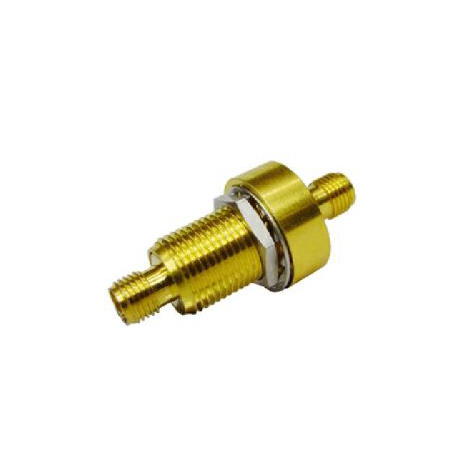

Lightning Arrestor, DC-5.8GHz. SMA Female Bulkhead

Lightning Arrestor, DC-5.8GHz. SMA Female to SMA Female, Bulkhead

Description

Lightning Arrestor, DC-5.8GHz. SMA Female to SMA Female, Bulkhead

Slim Line GDT technology

Benefits
Broad-band design
DC continuity for outdoor powering
The protector can also be installed reversely
Permanently installed gas discharge tube
Compliant to IEC 61643-21

Product Configuration

Main path connectors Port 1: unprotected, SMA jack (female) - Port 2: protected, SMA jack (female)
Mounting and grounding MH3 (MH=bulkhead mounting)

Electrical Data

Impedance 50 Ω
Frequency range 0 - 5800 MHz
Return loss ≥ 20 dB
Insertion loss ≤ 0.2 dB
RF CW power ≤ 60 W
PIM 3rd order not specified
Surge current handling capability 10 single / 5 multiple kA (test pulse 8/20 μs)
Residual pulse energy 250 μJ typically (test pulse 4 kV 1.2/50 μs / 2 kA 8/20 μs) main path - protected side

Mechanical Data

Weight 50 g

Environmental Data

Operating temperature -40 °C to +85 °C
Waterproof degree IP20 (according to IEC 60529, data refer to the coupled state)
2002/95/EC (RoHS) Telecom compliant

Material Data

Piece Parts Material Surface Plating
Housing Brass Silver / Gold Plating
Port 1 center contact Copper Beryllium Alloy Gold Plating (without Nickel underplating)
Port 2 center contact Copper Beryllium Alloy Gold Plating (without Nickel underplating)

Other Information

Datasheet pdf
