ROGER GPS/GLONASS/GALILEO Repeater Package, 40mtr cable

Roger GPS/GLONASS/GALILEO Basic Repeater Package, including repeater, power supply, outdoor antenna & 40mtrs of cable

Part # GNSS-L1G1GA-BP40. Categories: , . Tags: , , , , , .

Description

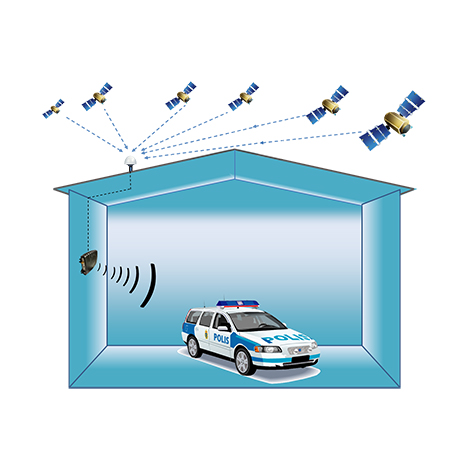

A single ROGER GNSS Repeater Package is enough to provide a GPS/GLONASS/GALILEO indoor coverage area of about 1000 square meters and a distance up to 50 meters from the repeater center. Mount the external antenna on the roof of the building and connect the cable supplied with the kit to the antenna and other end to the repeater installed indoors. Connect the power supply unit to the repeater, adjust the repeater’s transmission power according to the local conditions, to prevent a signal loopback, and indoor GPS/GLONASS/GALILEO coverage is immediately available.

Several ROGER GNSS Repeater Packages can be installed in the same building.

Alternatively, the signal coverage provided by a single package can be extended with ROGER GNSS Accessories, such as line amplifiers and signal splitters.

What’s in the Box

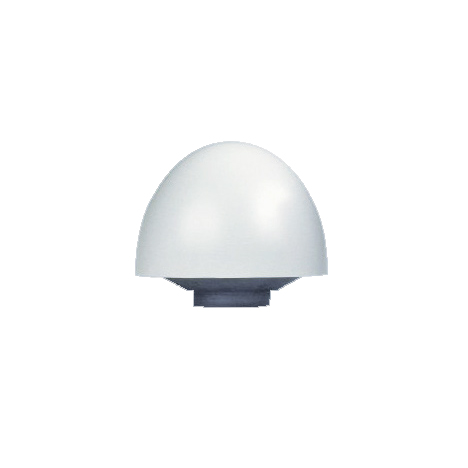

  • Outdoor antenna for receiving the GPS signal

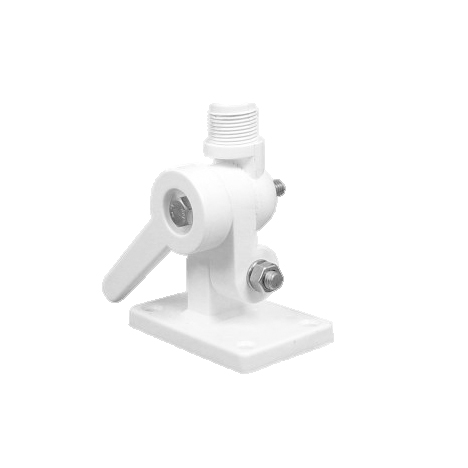

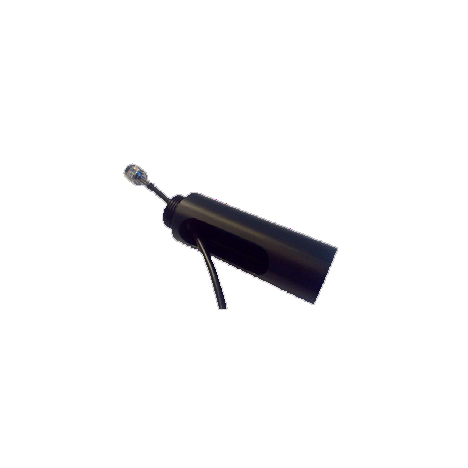

  • Antenna mount and adapter for cables
  • ROGER GPS/GLONASS/GALILEO Repeater unit
  • Power supply

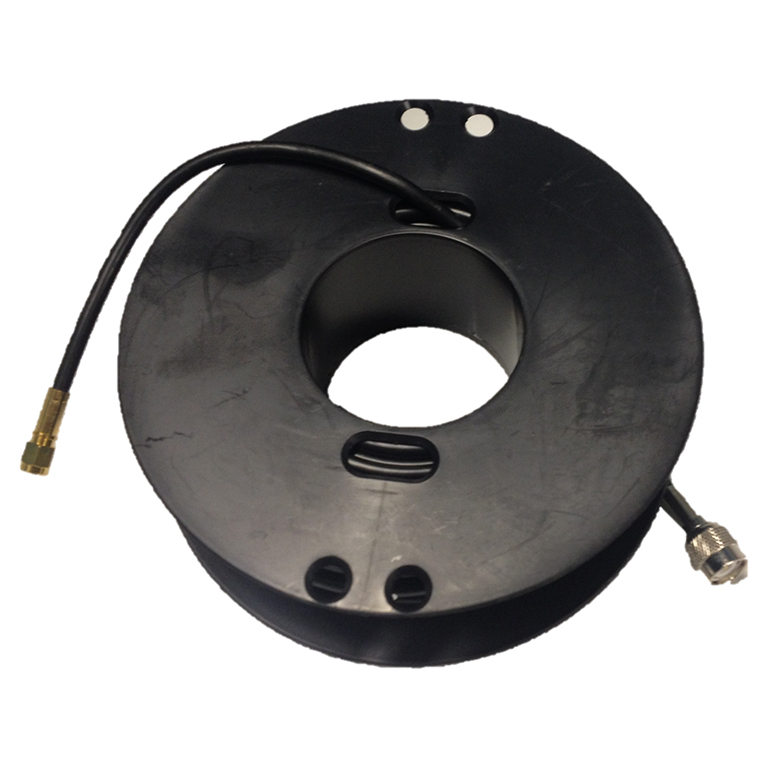

  • RF-cabling, 40 m
  • Manual

Product Video

Frequency GPS L1 (1.57542 GHz)
GLONASS G1 (1.602 GHz)
GALILEO E1 (1.57542 GHz)
Size 110x143x28 mm
Weight 165 g
Overall Gain > 40 dB
Noise Figure < 2 dB
Variable attenuation 0-40 dB
Impedance 50 ohm
Input connector SMA-female
Operating temperature -25 - +55°C
Power supply 12VDC, 1.5A
Antenna power output +5VDC, 100mA
TX antenna gain max +4 dBd, RHCP polarization
Antenna Gain +28 dB
Cable Length 40 metres
