Load N Male, 10W DC-3GHz

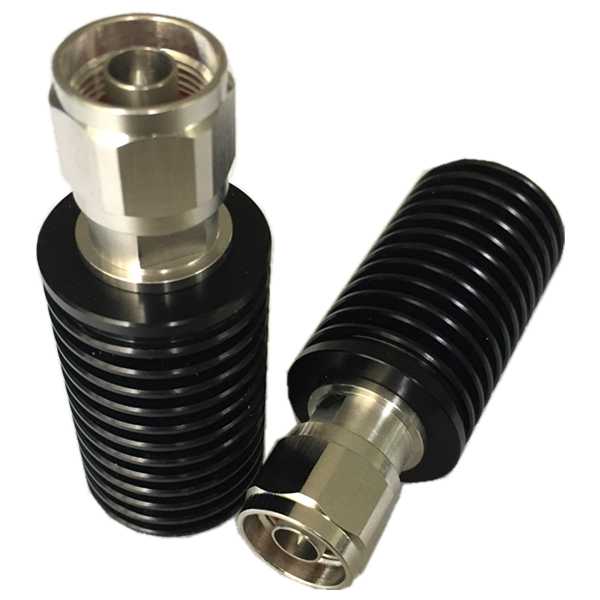

Load Termination N-Type Male 10W, DC-3GHz

Part # LT-10-NM. Categories: , . Tags: , , , .

Description

Load Termination N-Type Male 10W, DC-3GHz

  • N Male Connector
  • 50 Ω
  • 10 Watt
  • DC-3GHz
  • VSWR ≤ 1.2:1

Electrical Data

Power(W) 10
Frequency DC-3GHz
VSWR ≤1.20
Impedance (Ω) 50

Mechanical Data

Connector N-Type Male
Colour Black

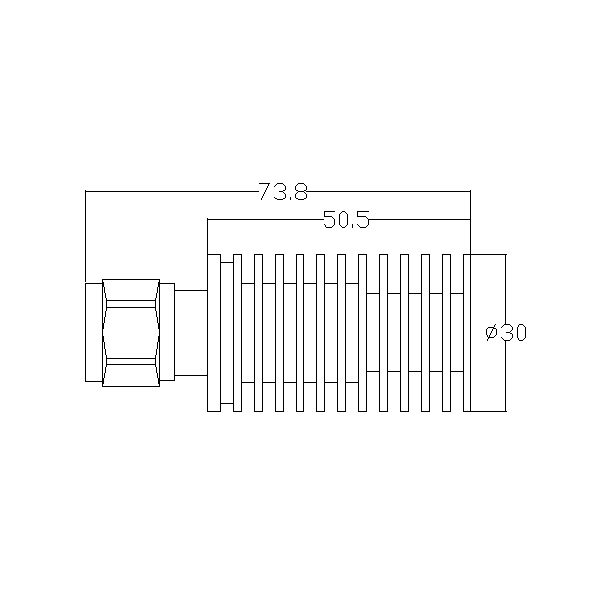

Dimnesions (mm) 73.8 x φ30 mm
Weight (kg) 0.1

Environmental Data

Temperature -35~+125℃
