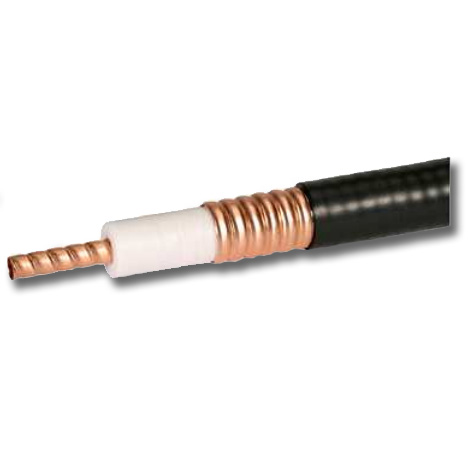

SUCOFEED 7/8″ 50OHm High Flex Corrugated Cable
7/8″ High Flex 50OHm Cable
SUCOFEED 7/8″ 50OHm High Flex Corrugated Cable
SUCOFEED_7/8_HF |
||||||
| Description | 7/" High flexible corrugated coaxial cable | |||||
| Halogen Free | yes | |||||
| 2002/95/EC (RoHS) | compliant | |||||
| 2002/96/EC (WEEE) | no special marking needed | |||||
Cable Design |
||||||
| Material | Detail | Diameter | ||||
| Centre conductor | Copper | Tube (c) | 9.4mm | |||
| Dielectric | SPE (Foamed Polyethylene) | 22.4mm | ||||
| Outer conductor | Copper | Tube (c) - 100% coverage | 25mm | |||
| Jacket | PE-LD (Low-density polyethylene) | RAL 9005 - bk | 27.5mm | |||
| Tolerance of jacket | ± 0.2mm | |||||
Electrical Data |
||||||
| Operating Frequency | ≤ 4.9GHz | |||||
| Nom. attenuation | See Attenuation & Power Tab | Coefficient a | 0.035488036 | |||
| Coefficient b | 0.007030847 | |||||
| CW Power | See Attenuation & Power Tab | |||||
| Impedance | 50 ± 1Ω | |||||
| Capacitance | 75.4pF/m | |||||
| Inductance | 0.2µH/m | |||||
| Propagation Velocity | 85%of c | |||||
| Signal Delay | 3.9ns/m | |||||
| Insulation Resist | >5000000MΩm | |||||
| Test Voltage | 6kVrms | |||||
| Operating Voltage | at sea level 3kVrms | |||||
| Inner Cond Res DC | typical 3.2Ω/km | |||||
| Outer Cond R. DC | typical 2.2Ω/km | |||||
| PIM | -155dBc | |||||
General Data |
||||||
| Operating Temp min | -55°C | |||||
| Operating Temp max | 85°C | |||||
| Installation Temp min | -25°C | |||||
| Installation Temp min | 60°C | |||||
| Halogen Test | IEC 60754-1 | |||||
| Weight | 48kg/100m | |||||
| Static Bend Radius | 90mm | |||||
| Repeated Bend Radius | 125mm | |||||
| Number of Cycles | 15bend. | |||||
| Bending Force Moment | 16.3Nm | |||||
Other Information] |
||||||
| Cable Tool | 74_Z-0-23-16 | |||||
| Cable Grounding Kit | 9076.99.N078; 9076.99.P078 | |||||
| Data Sheet |  |
|||||
| Frequency | Attenuation* | Power** | |
| [GHz] | [dB/m] | [dB/ft] | [W] |
| 0.01 | 0.00 | 0.00 | 19400 |
| 0.05 | 0.01 | 0.00 | 8676 |
| 0.10 | 0.01 | 0.00 | 6135 |
| 0.15 | 0.01 | 0.00 | 5009 |
| 0.20 | 0.02 | 0.01 | 4338 |
| 0.30 | 0.02 | 0.01 | 3542 |
| 0.40 | 0.03 | 0.01 | 3067 |
| 0.45 | 0.03 | 0.01 | 2892 |
| 0.50 | 0.03 | 0.01 | 2744 |
| 0.60 | 0.03 | 0.01 | 2505 |
| 0.80 | 0.04 | 0.01 | 2169 |
| 0.85 | 0.04 | 0.01 | 2104 |
| 0.90 | 0.04 | 0.01 | 2045 |
| 0.95 | 0.04 | 0.01 | 1990 |
| 1.00 | 0.04 | 0.01 | 1940 |
| 1.80 | 0.06 | 0.02 | 1446 |
| 1.90 | 0.06 | 0.02 | 1407 |
| 2.00 | 0.06 | 0.02 | 1372 |
| 2.40 | 0.07 | 0.02 | 1252 |
| 3.00 | 0.08 | 0.03 | 1120 |
| 4.00 | 0.10 | 0.03 | 970 |
| 4.90 | 0.11 | 0.03 | 876 |
* Attenuation values at +25°C ambient temperature and sea level
** Power values at +40°C ambient temperature and sea level
