Description
75Ω Lightning Protector. F-type Female. DC-3GHz
- Broad-band design
- DC continuity for remote powering
- The protector can also be installed reversely
- Fix installed GDT, static sparkover-voltage nom. 90 V

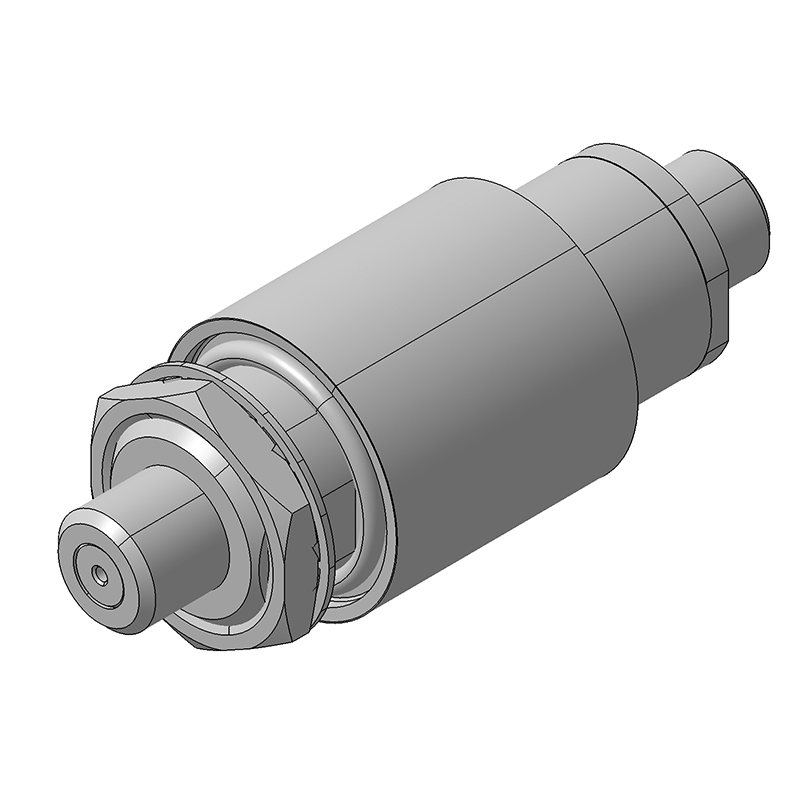

75Ω Slimline EMP Protector F-Female
75Ω Slimline EMP Protector F-Female
Technical Data |
||
| Electrical Data | ||
| Impedance | 75 Ω | |
| Frequency range | 0 - 3000 MHz | 0 - 2000 MHz |
| Return loss | ≥ 20 dB | ≥ 20 dB |
| Insertion loss | ≤ 0.4 dB | ≤ 0.2 dB |
| RF CW power | ≤ 12 W | ≤ 12 W |
| PIM 3rd order | not specified | |
| DC current | ≤ 3 A | |
| Surge current handling capability | 10 single / 5 multiple kA (test pulse 8/20 μs) | |
| Residual pulse energy | 350 μJ typically (test pulse 4 kV 1.2/50 μs / 2 kA 8/20 μs) main path - protected side | |
| Mechanical Data | ||
| Number of matings | 30 | |
| Weight | 85 g | |
| Environmental Data | ||
| Operating temperature | -40 °C to +85 °C | |
| Waterproof degree | IP67 (according to IEC 60529, data refer to the coupled state) | |
| 2011/65/EU (RoHS) | compliant | |
| Material | ||
| Housing: | Brass, SUCOPLATE ® Plating | |
| Centre contacts: | Bronze, silver plating | |
