Description

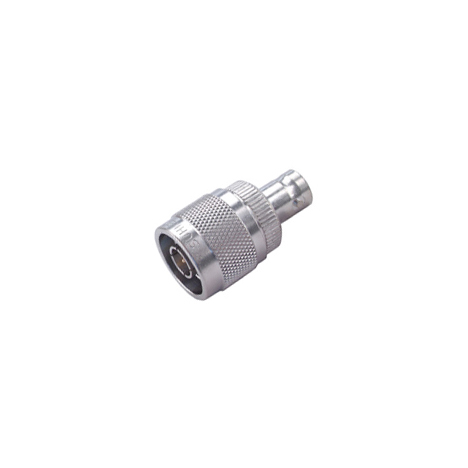

Adapter, BNC Female to N Male.
H+S Code: 33_N-BNC-50-1/133_UE
BNC Female – N Male
BNC Female – N Male
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 4 GHz | |
| Frequency range | DC to 4 GHz | |
| Return loss | ≥ 20 dB | |
Mechanical Data |
||
| Number of matings | 500 | |
| Weight | 0.0387 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts (BNC jack) | Material | Surface Plating |
| Centre contact | Copper Beryllium Alloy | Gold Plating (without Nickel underplating) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Piece Parts (N plug) | ||
| Centre contact | Copper Beryllium Alloy | Gold Plating (without Nickel underplating) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Coupling nut | Brass | SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) | |
Related Documents |
||
| Catalogue drawing | DCA-00014047 | |
