Description

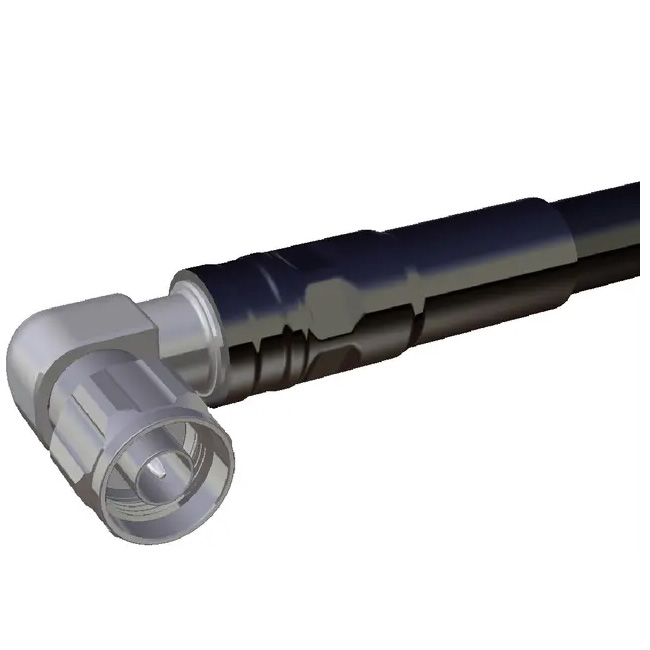

N Male Right Angle Crimp, suits SPUMA-600/CNT-600/LMR600.
H+S Code: 16_N-50-12-12/033_-E
N Male Right Angle Crimp, SPUMA-600
N Male Right Angle Crimp, suits SPUMA600/CNT-600/LMR600.
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 11 GHz | |
Mechanical Data |
||
| Centre contact | plugged | |
| Outer contact | crimped | |
| Weight | 0.082407 kg | |
Environmental Data |
||
| Operating Temperature | -40 °C to 85 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts | Material | Surface Plating |
| Centre contact | Brass | Silver Plating |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Coupling nut | Brass | SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) | |
| Crimp ferrule | Copper | SUCOPLATE (R) Plating |
Additional Information |
||
| Suitable cables | SPUMA-600 | |
