Description

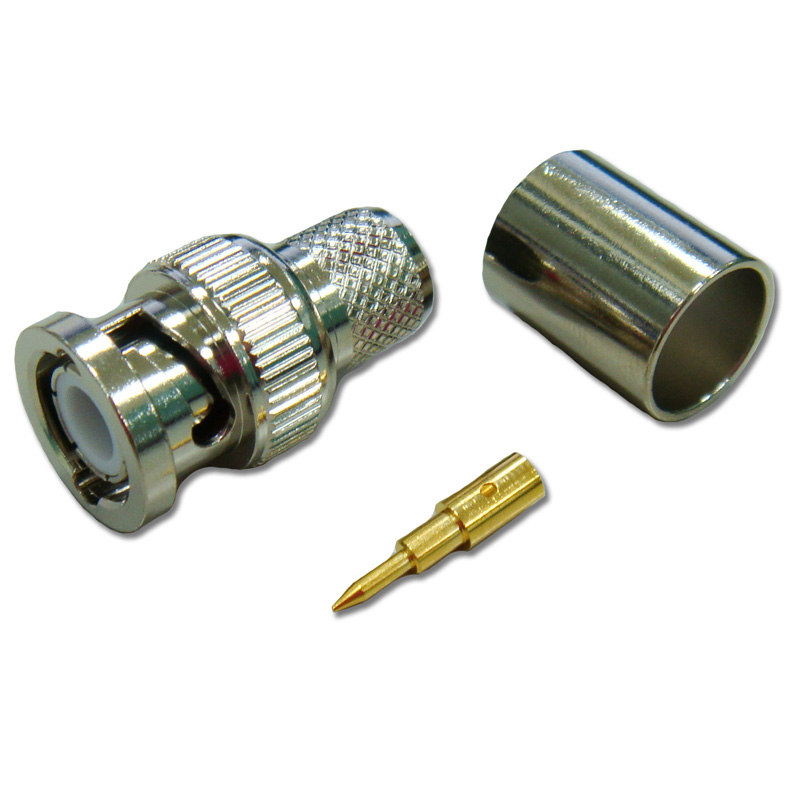

BNC Male crimp connector suits SPUMA400/LMR400/CNT-400 & RG213 (if you solder the pin)
BNC Male crimp connector suits SPUMA400/LMR400/CNT-400 & RG213
BNC Male crimp connector suits SPUMA400/LMR400/CNT-400 & RG213 (if you solder the pin)
Electrical Data |
||
Impedance | 50 Ω | |
Interface frequency max. | DC-4 GHz | |
Mechanical Data |
||
Centre contact | crimped | |
Outer contact | crimped | |
Weight | 0.01568 kg | |
Environmental Data |
||
Operating Temperature | -65 °C to 165 °C | |
2002/95/EC (RoHS) | compliant | |
Material Data |
||
Piece Parts | Material | Surface Plating |
Centre contact | Brass | Gold Plating |
Outer contact | Brass | Nickel |
Body | Brass | Nickel |
Insulator | Teflon | |
Coupling nut | Brass | Nickel |
Gasket | Rubber | |
Crimp ferrule | Brass | Nickel |
Additional Information |
||
Suitable cables | SPUMA-400, SPUMA-400-FR, LMR400, CNT-400, RG213 (solder pin) |
