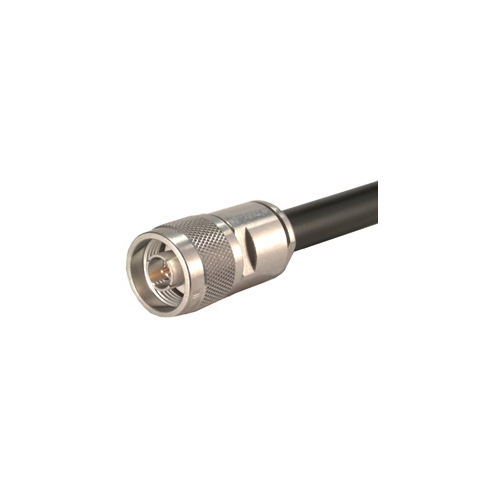

N Male Solder/Clamp, RG213/RG214

N Male solder clamp, suits RG213/RG214

Part # N2134M-S-HS. Categories: , . Tags: , , , , , , .

Description

N Male solder clamp, suits RG213/RG214.

H+S Code: 11_N-50-7-5/133_NE





HUBERSUHNERLogo

Electrical Data

Impedance 50 Ω
Interface frequency max. 11 GHz

Mechanical Data

Centre contact soldered
Outer contact clamped
Weight 0.0504 kg

Environmental Data

Operating Temperature -65 °C to 165 °C
2002/95/EC (RoHS) compliant

Material Data

Piece Parts Material Surface Plating
Centre contact Brass Gold Plating (Nickel underplated)
Outer contact Brass SUCOPLATE (R) Plating
Body Brass SUCOPLATE (R) Plating
Insulator PFA / PTFE
Coupling nut Brass SUCOPLATE (R) Plating
Gasket VMQ (Silicone Rubber)

Related Documents

Outline drawing DOU-00006936
Catalogue drawing DOU-00006550
Assembly instruction DOC-0000179331

Additional Information

Suitable cables RG_213_/U, GX_07272, G_07262, G 07272, RG214
