N Male Solder/Clamp RA, SPUMA400

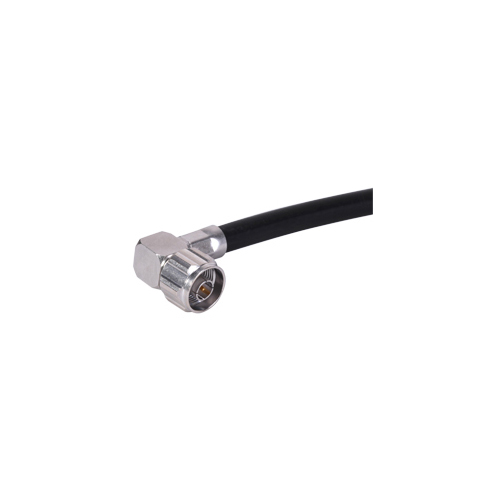

N Male Solder/Clamp Right Angle, suits SPUMA400/CNT-400/LMR400.

Description

N Male Solder/Clamp Right Angle, suits SPUMA400/CNT-400/LMR400.

H+S Code: 16_N-50-7-50/133_NE



HUBERSUHNERLogo

Electrical Data

Impedance 50 Ω
Interface frequency max. 11 GHz
Frequency range DC to 6 GHz
Return loss ≥ 30 dB

Mechanical Data

Centre contact plugged
Outer contact clamped
Weight 0.087056 kg

Environmental Data

Operating Temperature -40 °C to 160 °C
2011/65/EU (RoHS) compliant

Material Data

Piece Parts Material Surface Plating
Centre contact Brass Gold Plating (Nickel underplated)
Outer contact Brass SUCOPLATE (R) Plating
Body Brass SUCOPLATE (R) Plating
Insulator PTFE (Polytetrafluoroethylene)
Coupling nut Brass SUCOPLATE (R) Plating
Gasket VMQ (Silicone rubber)

Related Documents

Outline drawing DOU-00101519
Catalogue drawing DCA-00221170
Assembly instruction DOC-0000253737

Additional Information

Suitable cables S_07162_B, SPUMA_400, SPUMA_400-FR, LMR-400
