QN Male, RG58

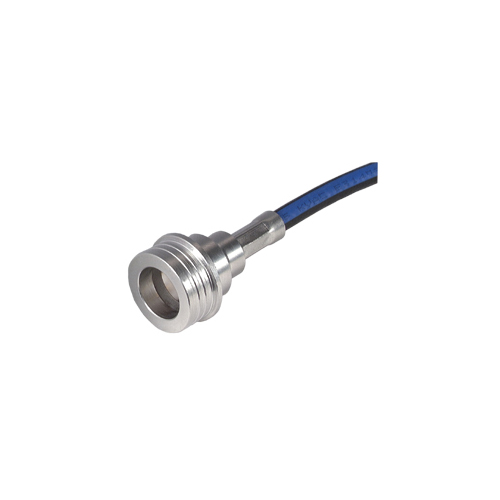

QN Male Crimp Connector, suits RG58

SKU: QN58M-HS Categories: Connectors, QN Tags: Crimp, LMR195, Male, QN, RG58, SPUMA-195

Description

QN Male Connector Suits RG58, LMR195

H+S Code: 11_QN-50-3-2/133_NE

Electrical Data
Impedance	50 Ω
Interface frequency max.	11 GHz
Frequency range	DC to 1 GHz	1 to 2.5 GHz
Return loss	32 dB	30 dB
Mechanical Data
Centre contact	crimped
Outer contact	crimped
Weight	0.016 kg
Environmental Data
Operating Temperature	-40 °C to 125 °C
2011/65/EU (RoHS - including 2015/863 and 2017/2102)	compliant
Material Data
Piece Parts	Material	Surface Plating
Centre contact	Brass	SUCOPRO Plating
Outer contact	Brass	SUCOPLATE (R) Plating
Body	Brass	SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling nut	Brass	SUCOPLATE (R) Plating
Gasket	EPDM (Ethylene propylene diene rubber)
Crimp ferrule	Copper	SUCOPLATE (R) Plating
Additional Information
Suitable cables	RG58, SPUMA-195, LMR195, LMR195-UF
