VHF High Band 1/4 wave whip

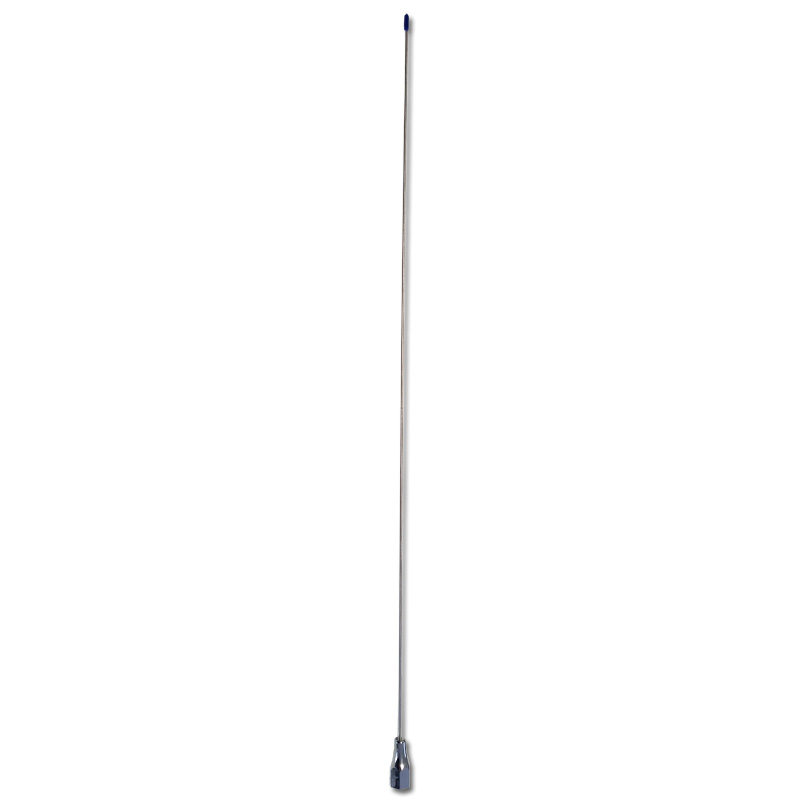

VHF High Band 1/4 wave roof mount antenna

Part # QW-VHF-H. Categories: , . Tags: , , , , .

Description

VHF High Band 1/4 wave roof mount antenna

This antenna, is a unity gain, rigid parallel, spring stainless steel, quarter-wave mobile antenna tuneable across the VHF band 123 to 174 MHz. Its robust construction ensure excellent longevity and performance.

Applications
Mobile coverage for VHF commercial Radio Bands.

Construction
Parallel, rigid, Stainless Steel radiator. Nickel plated brass base ferrule.



Frequency 125 - 174 MHz
Gain 0 dB
Tuned Bandwidth 15% @ <2.0:1 VSWR
8% @ <1.5:1 VSWR
Input Impedance 50 ohms (Nominal)
Construction Polished parallel Stainless Steel Radiator.
Length 589 mm
Termination 5/16" 26 TPI Female Thread
VSWR Curves

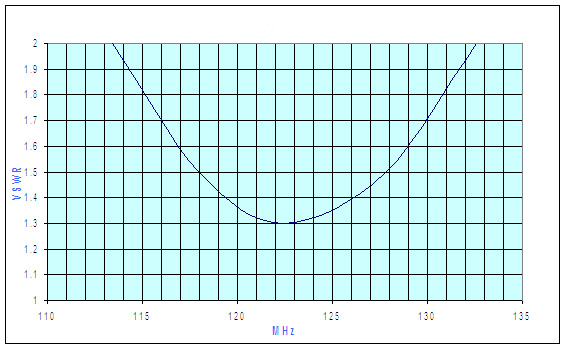

QW-VHF-H_VSWR(1)

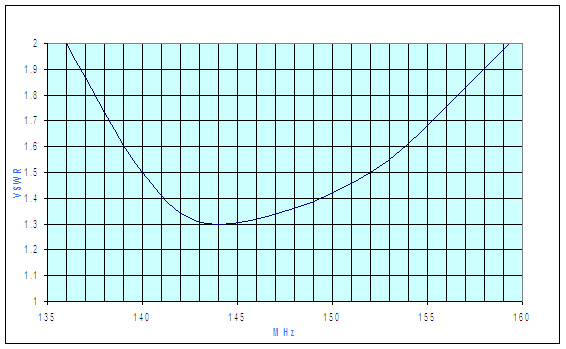

QW-VHF-H_VSWR(2)

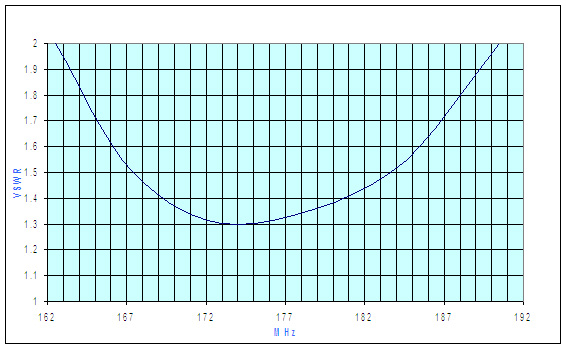

QW-VHF-H_VSWR(3)
