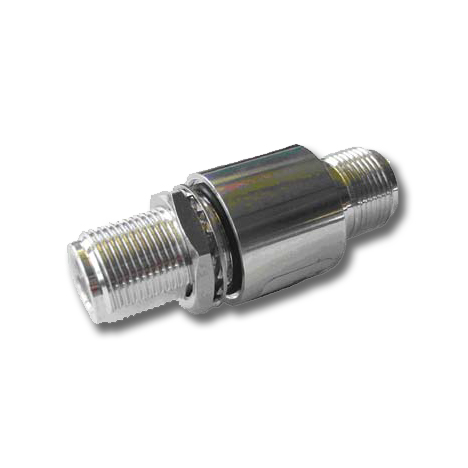

Surge Arrestor DC-6GHz 150V

Surge Arrestor DC-6GHz, 150V static SOV

Part # SSC_N150. Categories: Coaxial, Lightning Protection. Tags: Coaxial Lightning Protection, GDT, Huber+Suhner, Lightning Protection.

Description
Technical Data

Description

These SurgeShield Connectors (SSC) are gas discharged tube (GDT) surge protective devices designed to protect information and communication systems from surge voltage caused by lightning. The SSC are supplied with a fix installed and non replaceable GDT of 150 V static spark-over voltage. The environmental specification of IP68 makes it useable for any outdoor application.

Frequency range DC to 6 GHz
Configuration: N female/female & N male/female
30 W CW power rating
Maximum discharge current 20 kA
O-ring sealed to panel
Easy to install

Download Specifications
pdf

Technical Data
Electrical
Impedance:	50 Ohm
Frequency Range:	DC to 6 GHz
Return Loss:	typ. 26 dB (0 to 3 GHz)typ. 20 dB (3 to 4 GHz)typ. 17 dB (4 to 6 GHz)
Insertion Loss:	typ. 0.2 dB (0 to 3 GHz)typ. 0.3 dB (3 to 4 GHz)typ. 0.4 dB (4 to 6 GHz)
RF power:	≤ 30 W CW at 25°C
Continuous operating voltage Uc max.:	110 V (DC)
Nom. discharge current In:	20 kA (8/20μs) single10 kA (8/20μs) multiple
Residual energy at 4 kV (1.2/50μs); 2kA (8/20μs):	typ. 750μJ
Mechanical
Connectors:	N
Temperature Range:	-40°C to 85°C
Ingress protection level:	IP68 (in coupled state)
Weight:	90 g
Material
Housing:	Brass, tri-metal plated
Centre contact:	Brass / bronze,silver plated
Earthing	through-hole Ø 16.2 mm on a metallic plate or via cable lug and ground wire
