Description

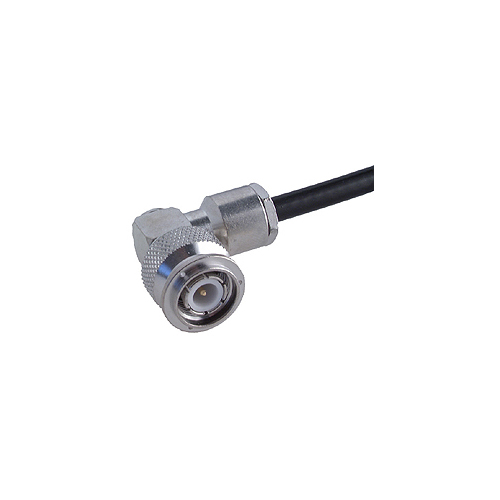

TNC Male Right Angle Solder/Clamp, suits RG213/RG214.
H+S Code: 16_TNC-50-7-4/133_NE
TNC Male R/A Solder/Clamp, RG213/214
TNC Male Right Angle Solder/Clamp, suits RG213/RG214.
Mechanical Data |
||
| Cable Entry Centre Contact | soldered | |
| Cable Entry Outer Contact | clamped | |
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface Freq max | ≤11 GHz | |
Environmental & General Data |
||
| Operating Temp min | -65°C | |
| Operating Temp max | 165°C | |
| Weight | 0.0561 kg | |
Material Data |
||
| 2011/65/EC (RoHS) | compliant | |
| Piece part | Base material | Plating |
| Center contact | Brass | Gold Plating (Nickel underplated) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Body | Brass | SUCOPLATE (R) Plating |
| Coupling nut | Brass | SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) | |
Suitable Cable Types |
||
| Cable | RG213, RG214 | |
