Description

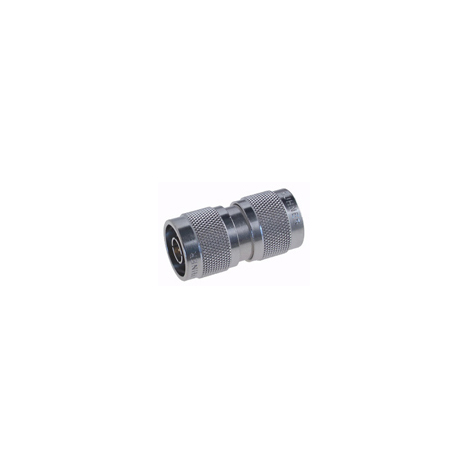

Adapter, N Male to N Male
H+S Code: 32_N-50-0-1/133_NE
N Male – N Male
Adapter, N Male to N Male
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 11 GHz | |
| VSWR | DC - 9GHz
≤ 1.06 + 0.04 f (GHz) |
|
Mechanical Data |
||
| Number of matings | 500 | |
| Weight | 0.0557 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2011/65/EU (RoHS) | compliant | |
Material Data |
||
| Piece Parts (SMA-jack) | Material | Surface Plating |
| Centre contact | Brass | Gold Plating (Nickel underplated) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PTFE (Polytetrafluoroethylene) | |
| Coupling Nut | Brass | SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) | |
Related Documents |
||
| Catalogue drawing | DCA-00013682 | |
