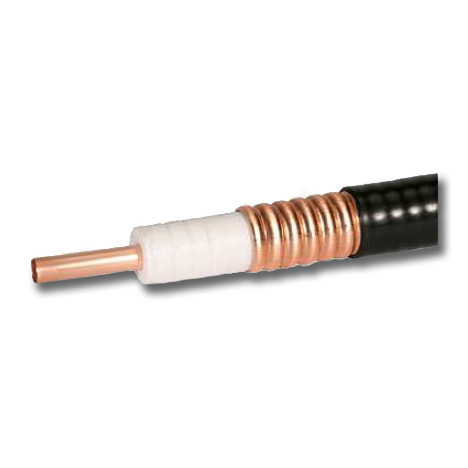

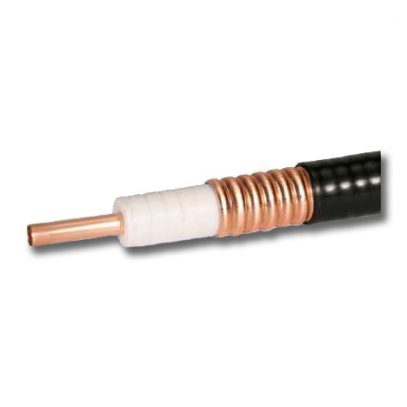

SUCOFEED 7/8″ Low Attenuation 50 OHm Corrugated Cable, equivalent to AVA5-50
7/8″ Corrugated Cable Low Attenuation
SUCOFEED 7/8″ Low Attenuation 50OHm Corrugated Cable
SUCOFEED_7/8_LA |
||||||
| Description | Corrugated coaxial cable - low attenuation | |||||
| Halogen Free | yes | |||||
| 2002/95/EC (RoHS) | compliant | |||||
| 2002/96/EC (WEEE) | no special marking needed | |||||
Cable Design |
||||||
| Material | Detail | Diameter | ||||
| Centre conductor | Copper | Tube | 9.5mm | |||
| Dielectric | SPE (Foamed Polyethylene) | 22.7mm | ||||
| Outer conductor | Copper | Tube (c) - 100% coverage | 25.4mm | |||
| Jacket | PE-LD (Low-density polyethylene) | RAL 9005 - bk | 27.9mm | |||
| Tolerance of jacket | ± 0.4mm | |||||
Electrical Data |
||||||
| Operating Frequency | ≤ 5GHz | |||||
| Nom. attenuation | See Attenuation & Power Tab | Coefficient a | 0.03376 | |||
| Coefficient b | 0.0037 | |||||
| CW Power | See Attenuation & Power Tab | |||||
| Impedance | 50 ± 1Ω | |||||
| Capacitance | 73.8pF/m | |||||
| Inductance | 0.2µH/m | |||||
| Propagation Velocity | 90.3%of c | |||||
| Signal Delay | 3.7ns/m | |||||
| Insulation Resist | >3000000MΩm | |||||
| Test Voltage | 6kVrms | |||||
| Operating Voltage | at sea level 3kVrms | |||||
| Inner Cond Res DC | typical 1.35Ω/km | |||||
| Outer Cond R. DC | typical 1.12Ω/km | |||||
| PIM | -155dBc | |||||
General Data |
||||||
| Operating Temp min | -55°C | |||||
| Operating Temp max | 85°C | |||||
| Installation Temp min | -40°C | |||||
| Installation Temp min | 60°C | |||||
| Halogen Test | IEC 60754-1 | |||||
| Weight | 48kg/100m | |||||
| Static Bend Radius | 120mm | |||||
| Repeated Bend radius | 250mm | |||||
| Number of Cycles | 15 bend. | |||||
| Bending Force Moment | 19Nm | |||||
Other Information |
||||||
| Cable Tool | 74_Z-0-23-17 | |||||
| Cable Grounding Kit | 9076.99.N078; 9076.99.P078 | |||||
| Data Sheet |  |
|||||
Frequency |
Attenuation* |
Power** |
|
| [GHz] | [dB/m] | [dB/ft] | [W] |
| 0.01 | 0.00 | 0.00 | 24400 |
| 0.05 | 0.01 | 0.00 | 10912 |
| 0.10 | 0.01 | 0.00 | 7716 |
| 0.15 | 0.01 | 0.00 | 6300 |
| 0.20 | 0.02 | 0.00 | 5456 |
| 0.30 | 0.02 | 0.01 | 4455 |
| 0.40 | 0.02 | 0.01 | 3858 |
| 0.45 | 0.02 | 0.01 | 3637 |
| 0.50 | 0.03 | 0.01 | 3451 |
| 0.60 | 0.03 | 0.01 | 3150 |
| 0.80 | 0.03 | 0.01 | 2728 |
| 0.85 | 0.03 | 0.01 | 2647 |
| 0.90 | 0.04 | 0.01 | 2572 |
| 0.95 | 0.04 | 0.01 | 2503 |
| 1.00 | 0.04 | 0.01 | 2440 |
| 1.80 | 0.05 | 0.02 | 1819 |
| 1.90 | 0.05 | 0.02 | 1770 |
| 2.00 | 0.06 | 0.02 | 1725 |
| 2.40 | 0.06 | 0.02 | 1575 |
| 3.00 | 0.07 | 0.02 | 1409 |
| 4.00 | 0.08 | 0.03 | 1220 |
| 5.00 | 0.09 | 0.03 | 1091 |
* Attenuation values at +25°C ambient temperature and sea level
** Power values at +40°C ambient temperature and sea level
