9dBdUHF Citizen Band Base Station Antenna

9dBd UHF CB Base Station Antenna

Description

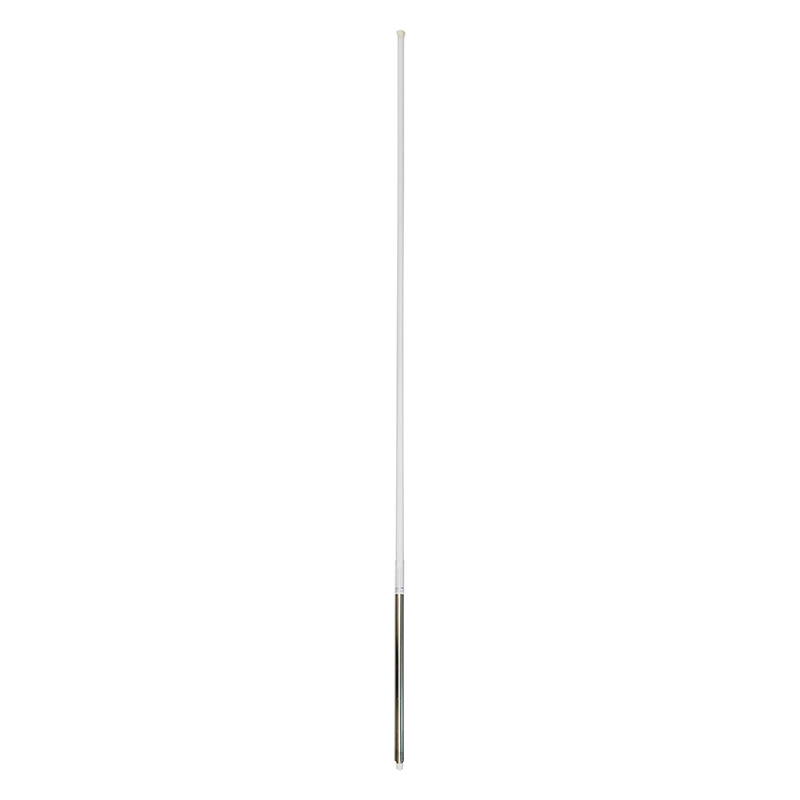

The 02649 antenna is a 9dBdgain, Citizens Band, Base Station antenna covering the UHF Citizens Radio Band. Its high gain affords exceptional radio range coverage over distances not normally serviced by lower gain antennas. The 02649 antennaoffersa stable radiation pattern with negligible horizontal pattern tilt. Its robust construction ensures excellent longevity and performance. Its smooth white tapered radome presents an attractive profile.

Base coverage for the UHF Citizens Radio Band.

Factory tuned, no further tuning required.

  • 477MHz Citizens Band
  • 9dBd Gain
  • Stainless Steel Mounting
  • Attractive smooth white tapered Radome
  • Copper Radiators
  • Fixed N Female Connector
  • Durable
  • New,shorter design
Frequency 476.425-476.900 MHz
Bandwidth at VSWR 1.5:1 3MHz
VSWR over operating range Less than 1.5:1
Nominal Impedance 50 Ohm
Termination N type female
Gain 9dBd (12dBi)
Radiation Pattern Omni directtional
E Plane Beamwidth 9 deg
Approx. Weight 2.36 Kg
Approx. Length 3.53mtr
Mounting S/Steel Mounting Tube (32 (OD) x 465(L) mm)
Construction Copper / Brass Radiators, Fibreglass Radome
