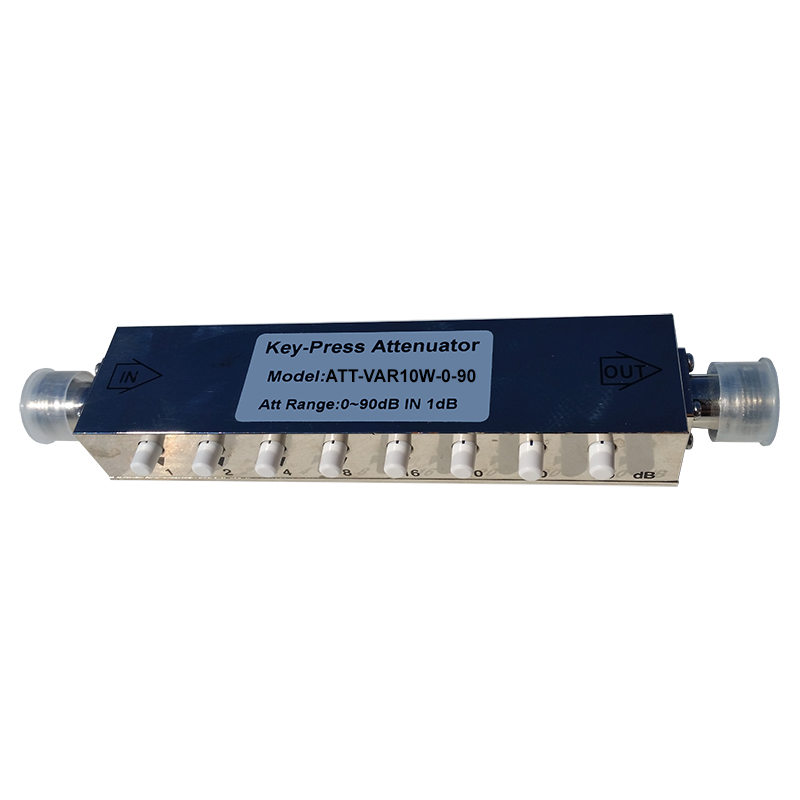

Variable Attenuator DC-3GHZ, 10W, 0-90dB in 1dB step

Key Press Variable Stepped Attenuator

Part # ATT-VAR10W-0-90. Categories: , , . Tags: , , , , , .

Description

Key Press Variable Stepped Attenuator

  • Frequency:DC-3GHz
  • Attenuation Range:0-90dB in 1dB step
  • Attenuation Step:1/2/4/8/16/20/20/20dB
  • VSWR:≤1.40
  • Insertion Loss:≤3.5dB
  • Attenuation Accuracy:±3.0dB
  • Power Rating:10W
  • Connector:N-Type female to N-Type female
  • Dimension:149×20×35.5mm
  • Temperature Range:-10℃~+60℃
