Diplexer. WiFi 2.4 GHz

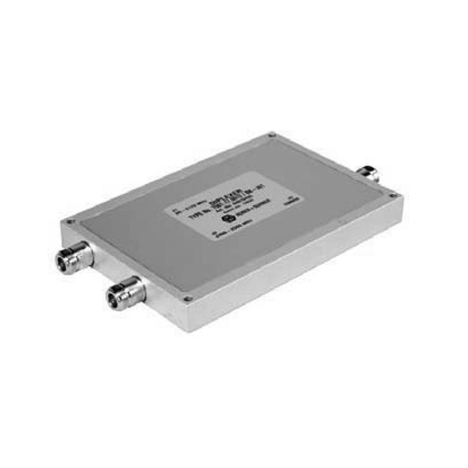

Diplexer. WiFi 2.4 GHz Injector / Technology: Stripline. N-Female

Part # 7501.17.0011. Categories: , . Tags: , , , , .

Description

Diplexer. WiFi 2.4 GHz Injector / Technology: Stripline. N-Female

The 7501.17.0011 diplexer is based on the 7501.17.0012 type. This model has been designed and tested to meet the European Rail Standards. The Diplexer links W-LAN 802.11(b) or (g) with Tetra, LMR/P25, and cellular wireless bands. Supports Tetra, LMR/P25, LTE, UMTS / WCDMA, TD-SCDMA, AMPS, GSM, PCS, CDMA. To minimize the effects of this WLAN Injector on system performance, the inputs are well isolated and have minimal insertion loss over their respective frequency bands. The W-LAN Injector has been designed using passive, proprietary techniques to ensure minimal loss and very high reliability. Corner holes are provided for simple mounting to a surface or cable tray.

Electrical Data

Band 1 Band 2
Frequency (GHz) 2.4 - 2.5 0.08 - 2.17
Return Loss (dB) 14 14
Insertion Loss (dB) 0.6 0.3
Insertion Loss ripple (dB) 0.1 0.1
Isolat. betw. Signal Bands (dB) Band 1 50
Max. Composite power (W) 8 150
Intermodulation distortion (dBc) 140 140
@ 2 x Carrier Power (dBm) 43 43
Port Designation J1 J2
Connector Type N Female N Female
Char. impedance 50 ohm all ports

Common Port

Port Designation J3
Connector N Female
DC path (DC to 20 MHz): J1 to J3: isolatedJ2 to J3: 2A max.

Mechanical Data

Dimensions (mm) 32.26 x 122.22 x 179.71 (Height x Width x Length)
Weight 0.91 kg
Housing Material: passivated Aluminium

Environmental Data

Environmental conditions indoor/outdoor
Operation temperature (°C) -40 to 85
Storage temperature (°C) -40 to 85
Transport temperature (°C) -40 to 85
IP rating IP 67
RoHS 2002/95/EC compliant
