Description

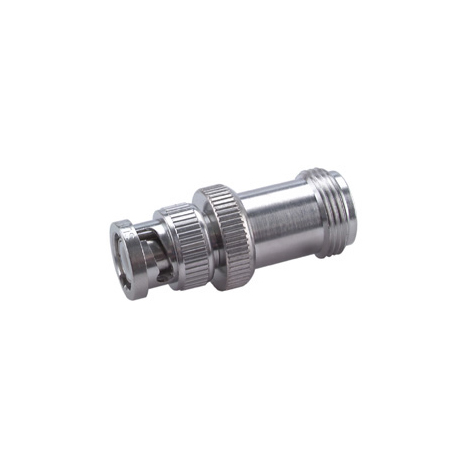

Adapter, BNC Male to N Female.
H+S Code: 33_BNC-N-50-1/133_NE
BNC Male – N Female
BNC Male – N Female
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 4 GHz | |
| Frequency range | DC to 4 GHz | |
| VSWR | ≤ 1.04 + 0.025 f (GHz) | |
Mechanical Data |
||
| Number of matings | 500 | |
| Weight | 0.0346 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts (BNC plug) | Material | Surface Plating |
| Centre contact | Copper Beryllium Alloy | Gold Plating (without Nickel underplating) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Coupling nut | Brass | SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) | |
| Piece Parts (N jack) | ||
| Centre contact | Copper Beryllium Alloy | Gold Plating (without Nickel underplating) |
| Outer contact | Brass | SUCOPLATE (R) Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
Related Documents |
||
| Catalogue drawing | DCA-00014388 | |
