7/16 DIN Female, 1/2″ Cable

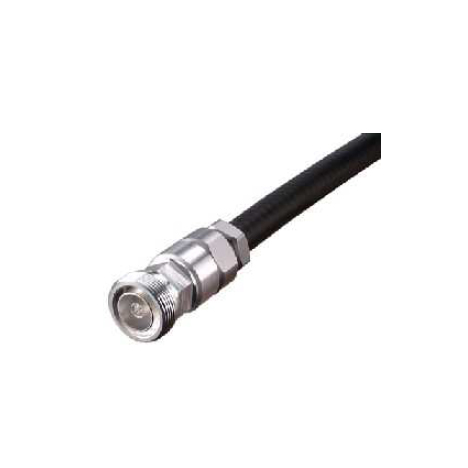

7/16 DIN Female suits 1/2″ Cable including LDF4-50, QuickFit.

Part # DIN12F-QF-HS. Categories: , . Tags: , , , , , , .

Description

7/16 DIN Female suits 1/2″ Cable including LDF4-50, QuickFit.

H+S Code: 21_716-50-12-10



HUBERSUHNERLogo

Electrical Data

Impedance 50 ohm
Interface frequency max. 7.5 GHz
Frequency range DC to 2.5 GHz
Return loss ≥ 30 dB
Intermodulation ≤ -155 dBc (2 x 43 dBm carrier)

Mechanical Data

Centre contact plugged
Outer contact clamped
Weight 0.1534 kg

Environmental Data

Operating Temperature -40 °C to 85 °C
2002/95/EC (RoHS) compliant

Material Data

Piece Parts Material Surface Plating
Centre contact Bronze Silver Plating
Outer contact Brass Silver Plating
Body Brass Silver / SUCOPLATE (R) Plating
Insulator PFA / PTFE
Coupling nut Brass SUCOPLATE (R) Plating
Gasket NR (Natural Rubber)

Related Documents

Outline drawing DOU-00006353
Catalogue drawing DOU-00006355
Assembly instruction DOC-0000179113

Additional Information

Suitable cables SUCOFEED_1/2, SUCOFEED_1/2_FR, SUCOFEED_1/2_FR_UL, Heliax LDF4-50A, NK Cables RF 1/2-50, Cellflex LCF12-50
