Description

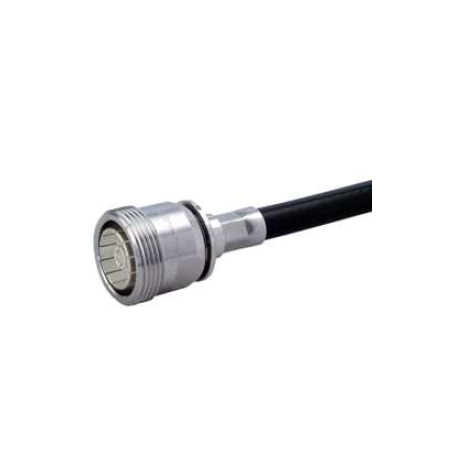

7/16 DIN Female Crimp, suits RG213.
H+S Code: 21_716-50-7-1/003_-E
7/16 DIN Female, RG213
7/16 DIN Female Crimp, suits RG213.
Electrical Data |
||
| Impedance | 50 ohm | |
| Interface frequency | max. 7.5 GHz | |
Mechanical Data |
||
| Centre contact | crimped | |
| Outer contact | crimped | |
| Weight | 0.0898 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts | Material | Surface Plating |
| Centre contact | Bronze / Brass | Silver Plating |
| Outer contact | Bronze | Silver Plating |
| Body | Brass | SUCOPLATE (R) Plating |
| Insulator | PFA / PTFE | |
| Gasket | NR (Natural Rubber) | |
| Crimp ferrule | Copper | SUCOPLATE (R) Plating |
Related Documents |
||
| Catalogue drawing | DOU-00007153 | |
| Assembly instruction | DOC-0000179881 | |
Additional Information |
||
| Suitable cables | RG_213_/U, GX_07272, G_07262 | |
