UHF Glass Mount Antenna 458-515MHz

UHF Glass Mount Antenna

Part # EF-486-5F. Categories: , . Tags: , , , .

Description

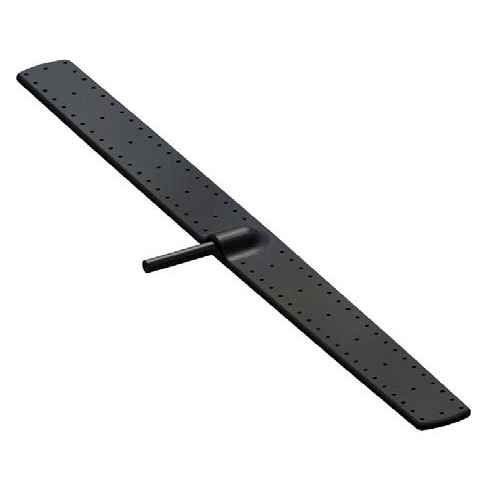

458-515MHz Internal Glass Mount Easyfit Covert Antenna

  • Covert application
  • No-hole installation
  • Can be removed without a trace

The EF series UHF internal glass mounting antenna provides a low visibility antenna solution for discreet or covert installations.

The antenna tuning is optimised to match a range of different automotive glass types to provide consistent performance in a wide range of vehicles and mounting positions.

With a flexible form factor, the antenna will adapt to the curvature of the glass and is easy to install with the pre-fitted automotive grade adhesive pad. The antenna is completely over-moulded for durability and sealed connection of the supplied high quality RG174 coaxial cable, which allows fitment of a wide range of connectors.

The EF series – the solution for a permanent or temporary covert installation.

Electrical Data

Frequency Range (MHz) 458-515
Peak Gain: Isotropic 2dBi
Compared to ¼ wave 0dB
Bandwidth @ 2:1 VSWR 10%
Polarisation Vertical
Pattern Omni-directional
Impedance 50Ω
Max Input Power (W) 40

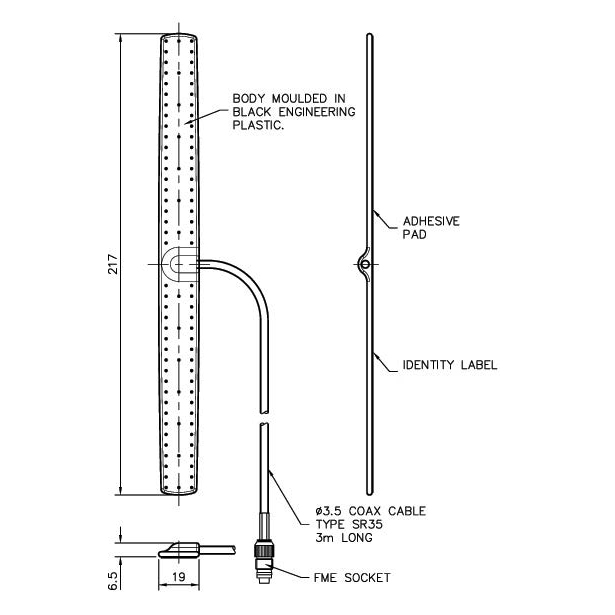

Mechanical Data

Dimensions (mm) Length 217 (8.54”)
Width 19 (0.74”)
Thickness 2.5 (0.1”)
Operating Temp (°C) -40° / +80°C (-40° / +175°F)
Material TPE
Colour Black

Mounting Data

Fixing Internal glass mount
Material Acrylic adhesive pad
Colour Black
Cable Data
Type RG174
Diameter (mm) 2.8 (0.1”)
Length (m) 5 (9.8’)
Termination FME socket

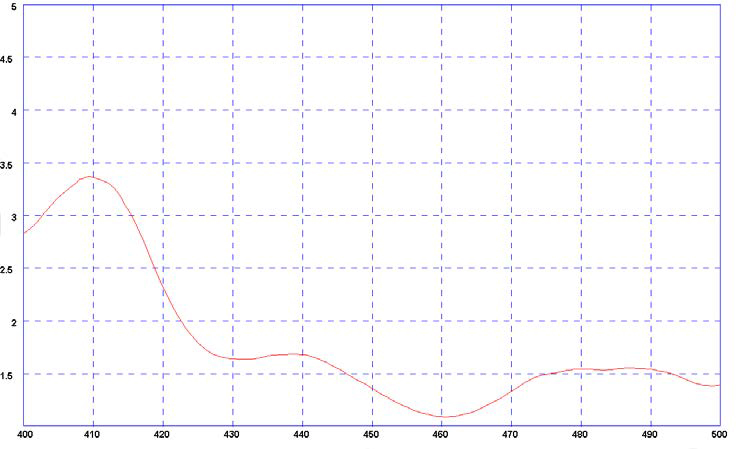

Typical VSWR *

*VSWR measured on typical glass with 3m (10’) RG174 cable

Typical E-Plane (MHz)

Typical H-Plane (460MHz)
