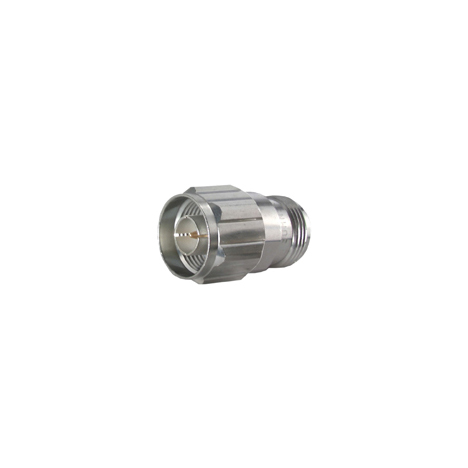

N Female – N Male

Description

Adapter, N Female to N Male.

H+S Code: 33_N-50-0-7/133_NE

Electrical Data
Impedance	50 Ω
Interface frequency max.	18 GHz
VSWR	DC - 18 GHz ≤ 1.03 + 0.05 f (GHz)
Mechanical Data
Number of matings	500
Weight	0.0419 kg
Environmental Data
Operating Temperature	-65 °C to 165 °C
2011/65/EU (RoHS)	compliant
Material Data
Piece Parts (N-male)	Material	Surface Plating
Centre contact	Copper Beryllium Alloy	Gold Plating (without Nickel underplating)
Outer contact	Brass	SUCOPLATE (R) Plating
Body	Brass	SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling Nut	Brass	SUCOPLATE (R) Plating
Piece Parts (N-female)	Material	Surface Plating
Centre contact	Copper Beryllium Alloy	Gold Plating (without Nickel underplating)
Outer contact	Brass	SUCOPLATE (R) Plating
Body	Brass	SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Related Documents
Catalogue drawing	DOU-00013882
