Description

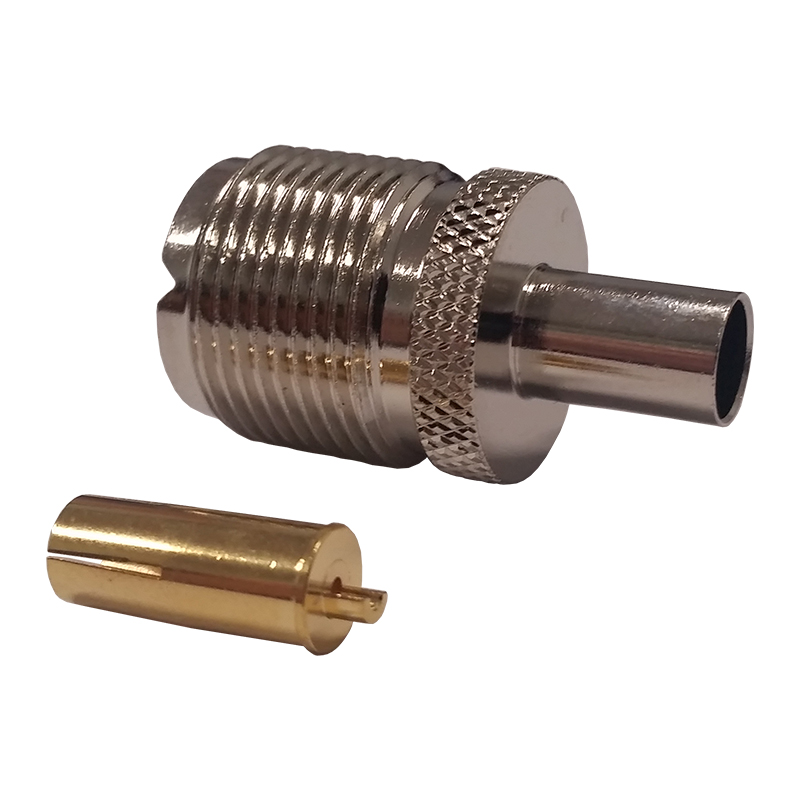

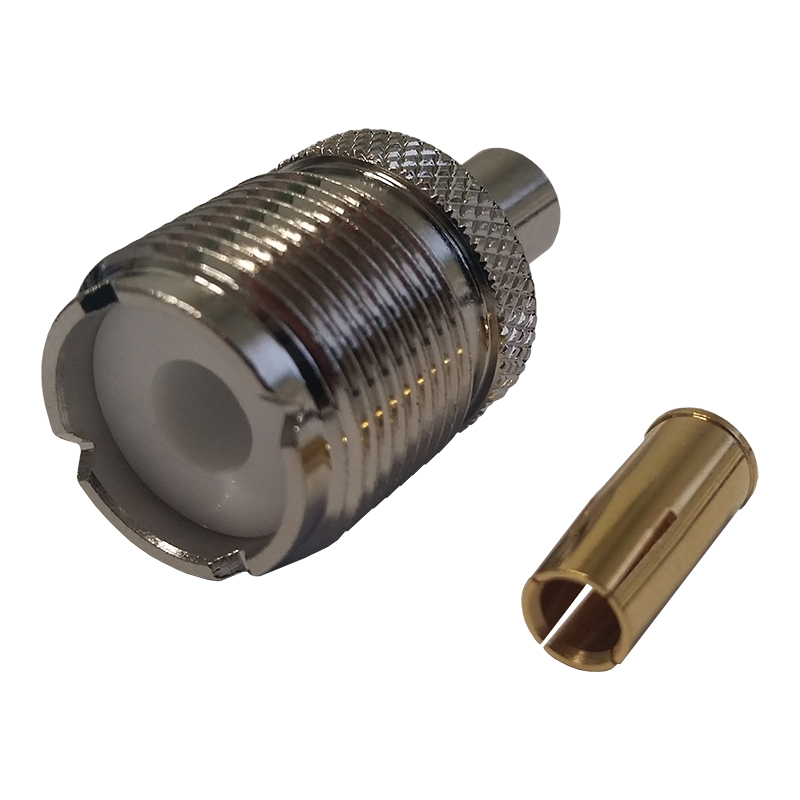

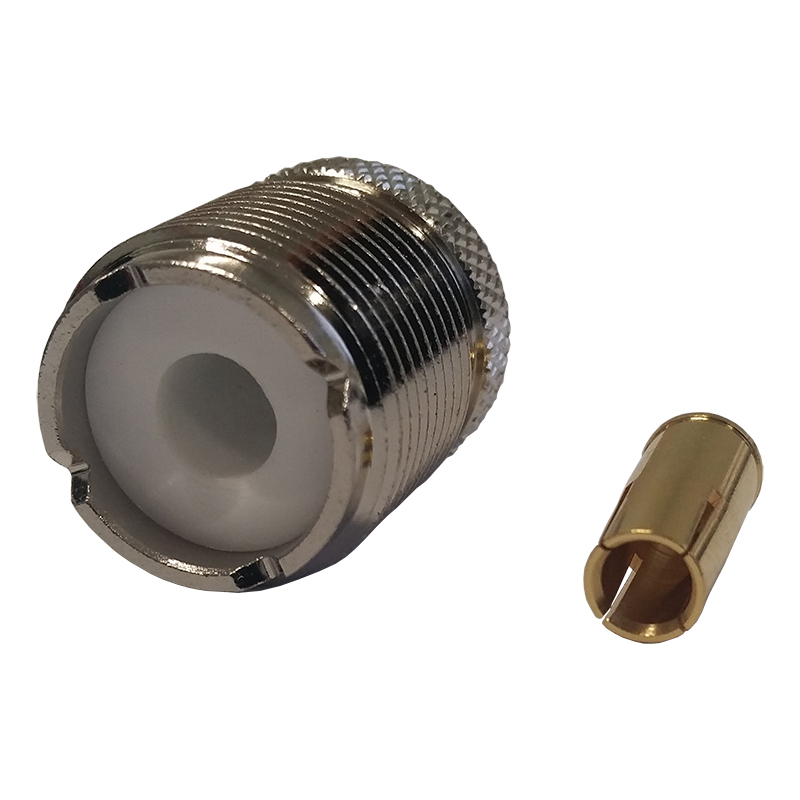

UHF Female connector, suits RG58. Solder pin, crimp sleeve
UHF Female, RG58
UHF Female connector, suits RG58. Solder pin, crimp sleeve
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | DC-1 GHz | |
Mechanical Data |
||
| Centre contact | crimp | |
| Outer contact | crimp | |
| Weight | 0.016 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts | Material | Surface Plating |
| Centre contact | Brass | Gold Plating |
| Body | Brass | Nickel |
| Dielectric | Tefon | |
| Shell | Brass | Nickel |
| Crimp ferrule | Brass | Nickel |
Additional Information |
||
| Suitable cables | RG58 | |
