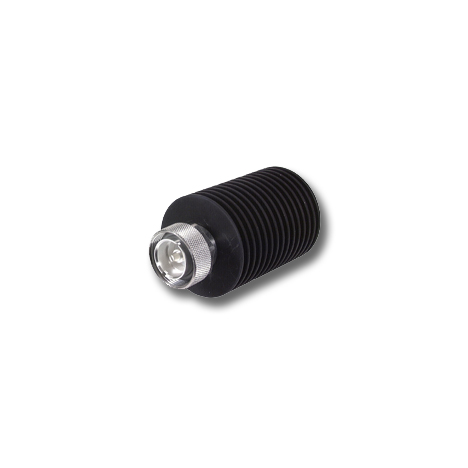

Load DIN Male, 60W DC-2GHz

Description

Load Termination DIN Male, 60W DC-2GHz

Product Configuration
Connector	7/16 DIN Male
Interface standard	IEC 60169-4_CECC 22190_DIN 47223_VG 95250
Technical Data
Electrical Data
Nominal impedance	50 Ω
Frequency range	DC to 2 GHz
VSWR max.	≤ 1.1 + 0.02 f (GHz), max. 1.1
Power rating	60 Watt average power up to 25 °C ambient temperature, linearly derated to 0 Watt at 150 °C ambient temperature.Mounted horizontally, convection cooled. 1500 Watt peak power, 5 μs pulse, 0.05 % duty cycle
Mechanical Data
Weight	0.382 kg
Environmental Data
Operating temperature	-40 °C to 50 °C
2002/95/EC (RoHS)	compliant
Material Data
Piece Part	Material	Surface Plating
Centre contact	Brass	Silver Plating
Outer contact	Brass	Silver Plating
Body / Heat sink	Alumnium	Anodized
Insulator	PFA / PTFE
Coupling nut	Brass	SUCOPLATE ® Plating
Other Information
Datasheet
Remarks	! WARNING: Beryllia Ceramic Inside ! DO NOT sand, scrap or tamper with. Dispose in accordance with all relevant regulations.
