N Male QuickFit, 1/2″ Hi-Flex

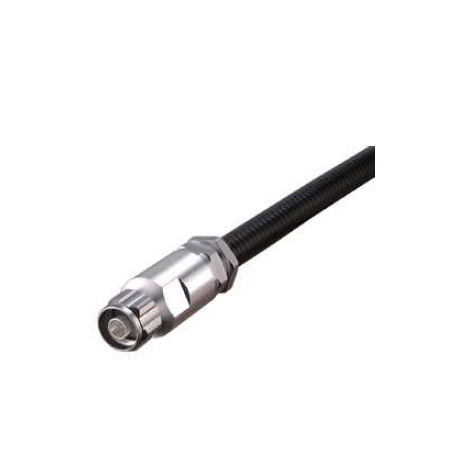

N-Type Male QuickFit Connector suits 1/2″ corrugated high flex cable.

Part # N12HFM-QF-HS. Categories: Connectors, N-Type. Tags: 1/2", Connectors, High Flex, Huber+Suhner, Male, N-Type, QuickFit.

Description

N-Type Male QuickFit Connector suits 1/2″ corrugated high flex cable.

H+S Code: 11_N-50-9-9/003

Electrical Data
Impedance	50 Ω
Interface frequency max.	11 GHz
Frequency range	DC to 3 GHz
Return loss	≥ 30 dB
Intermodulation	≤ -155 dBc (2 x 43 dBm carrier)
Mechanical Data
Centre contact	plugged
Outer contact	clamped
Weight	0.1117 kg
Environmental Data
Operating Temperature	-40 °C to 85 °C
2002/95/EC (RoHS)	compliant
Material Data
Piece Parts	Material	Surface Plating
Centre contact	Bronze	Silver Plating
Outer contact	Brass	SUCOPLATE (R) Plating
Body	Brass	SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling nut	Brass	SUCOPLATE (R) Plating
Gasket	NR (Natural Rubber)
Related Documents
Outline drawing	DOU-00006926
Catalogue drawing	DOU-00006928
Assembly instruction	DOC-0000179418
Additional Information
