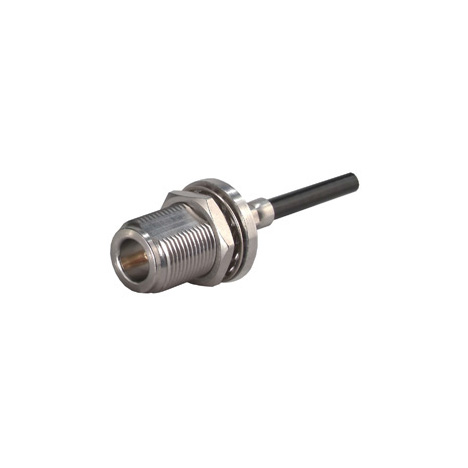

N Female Bulkhead crimp, RG223/142

N-Type Female Bulkhead crimp, suits RG223/RG142

Part # N223F-BH-HS. Categories: , . Tags: , , , , , , .

Description

N-Type Female Bulkhead crimp, suits RG223/RG142

H+S Code: 24_N-50-3-12/133_NE





HUBERSUHNERLogo

Electrical Data

Impedance 50 Ω
Interface frequency max. 11 GHz

Mechanical Data

Centre contact crimped
Outer contact crimped
Weight 0.0366 kg
Environmental Data
Operating Temperature -65 °C to 165 °C
2011/65/EU (RoHS) compliant

Material Data

Piece Parts Material Surface Plating
Centre contact Copper Beryllium Alloy Gold Plating (Nickel underplated)
Outer contact Brass SUCOPLATE (R) Plating
Body Brass SUCOPLATE (R) Plating
Insulator PFA / PTFE
Fastening nut Brass SUCOPLATE (R) Plating
Washer Bronze SUCOPLATE (R) Plating
Crimp ferrule Copper SUCOPLATE (R) Plating

Related Documents

Outline drawing DOU-00009279
Catalogue drawing DCA-00008901
Assembly instruction DOC-0000179851

Additional Information

Suitable cables RG223, ENVIROFLEX_142, RG142
