Description

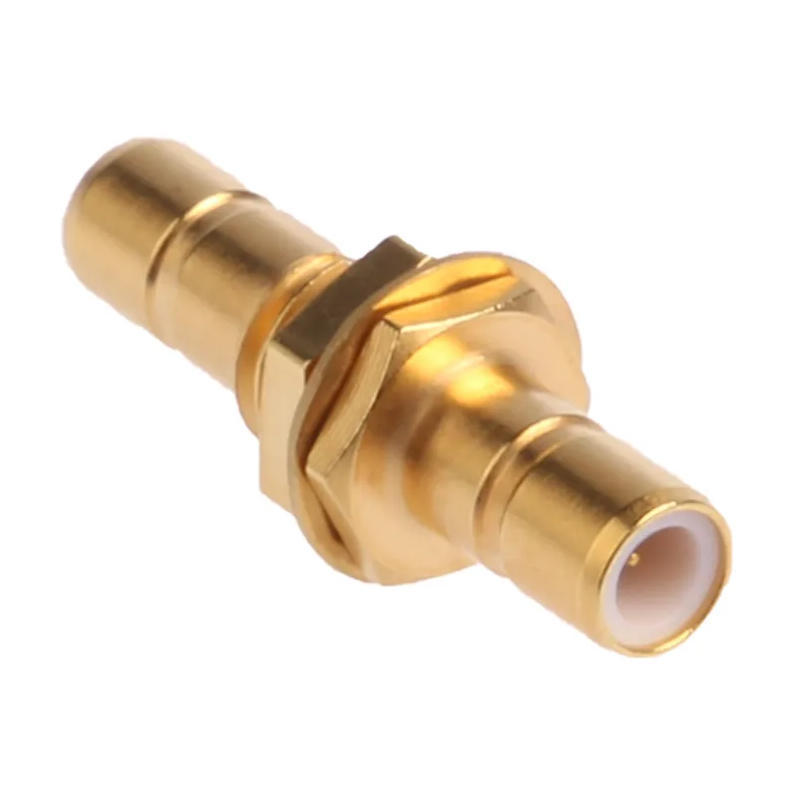

Adapter, SMB Female to Female Bulkhead.
H+S Code: 34_SMB-50-0-2/111_NE
SMB Female to Female Bulkhead. H+S
Adapter, SMB Female to Female Bulkhead.
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 4 GHz | |
| VSWR | DC - 2 GHz ≤ 1.04 + 0.1 f (GHz) |
|
| Frequency range | 2 to 4 GHz | |
| Return loss | ≥ 19 dB | |
Mechanical Data |
||
| Number of matings | 500 | |
| Weight | 0.0013 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2011/65/EU (RoHS - including 2015/863 and 2017/2102 |
compliant | |
Material Data |
||
| Piece Parts | Material | Surface Plating |
| Centre contact | Brass | Gold Plating (Nickel underplated) |
| Outer contact | Brass | Gold Plating (Nickel underplated) |
| Body | Brass | Gold Plating (Nickel underplated) |
| Insulator | PFA / PTFE | |
