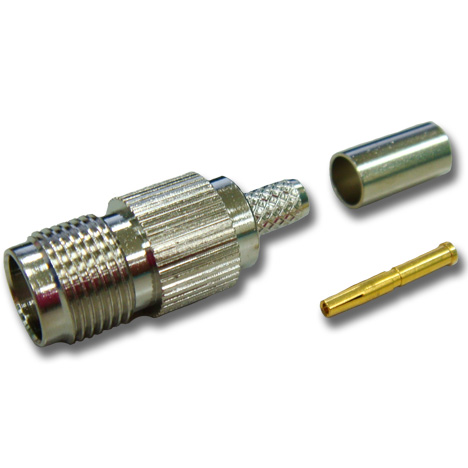

TNC Female Crimp, RG223/RG400

TNC Female Crimp, suits RG223/RG400

Part # TNC223F. Categories: , . Tags: , , , , , , , .

Description

TNC Female Crimp, suits RG223/RG400



Commswest-Connectors

Electrical Data

Impedance 50 Ω
Interface frequency max. DC-11 GHz

Mechanical Data

Centre contact crimped
Outer contact crimped
Weight 0.01476 kg

Environmental Data

Operating Temperature -65 °C to 165 °C
2002/95/EC (RoHS) compliant

Material Data

Piece Parts Material Surface Plating
Centre contact Brass Gold Plating
Shell Brass Nickel
Body Brass Nickel
Dielectric Teflon
Retaining Ring Brass Nickel
Gasket Rubber
Crimp ferrule Brass Nickel

Additional Information

Suitable cables RG223, RG400, EF400
