Description

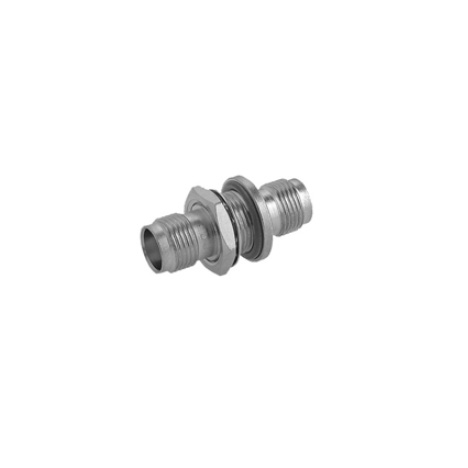

TNC Female to Female Bulk Head.
H+S Code: 34_TNC-50-0-1/133_N
TNC Female – TNC Female Bulk Head
TNC Female to Female Bulk Head
Electrical Data |
|||
| Impedance | 50 Ω | ||
| Interface frequency max. | 11 GHz | ||
| Frequency range | DC to 2 GHz | 2 to 8 GHz | 8 to 11 GHz |
| Return loss : | ≥ 26 dB | ≥ 14 dB | ≥ 10 dB |
Mechanical Data |
|||
| Number of matings | 500 | ||
| Weight | 0.0195 kg | ||
Environmental Data |
|||
| Operating Temperature | -65 °C to 165 °C | ||
| 2002/95/EC (RoHS) | compliant | ||
Material Data |
|||
Piece Parts |
Material | Surface Plating | |
| Interface - TNC jack (female) | |||
| Centre contact | Copper Beryllium Alloy | Gold Plating (Nickel underplated) | |
| Outer contact | Brass | SUCOPLATE (R) Plating | |
| Body | Brass | SUCOPLATE (R) Plating | |
| Insulator | PFA / PTFE | ||
| Gasket | VMQ (Silicone rubber) | ||
| Interface - TNC jack (female) | |||
| Centre contact | Copper Beryllium Alloy | Gold Plating (Nickel underplated) | |
| Outer contact | Brass | SUCOPLATE (R) Plating | |
| Body | Brass | SUCOPLATE (R) Plating | |
| Insulator | PFA / PTFE | ||
| Gasket | VMQ (Silicone rubber) | ||
Related Documents |
|||
| Outline drawing | DOU-00013573 | ||
| Mounting hole | DOU-00008751 | ||
