406-470MHz Duplexer, 6-cavity 50W

406-470MHz Duplexer, 6-cavity 50W

Part # DPF 70/6-9/13-N(f). Categories: , . Tags: , , , , , .

Description

Six-cavity 50watt mobile or base station duplexer for the 406-470MHz band. 9-13MHz spacing. Specify frequencies when ordering.

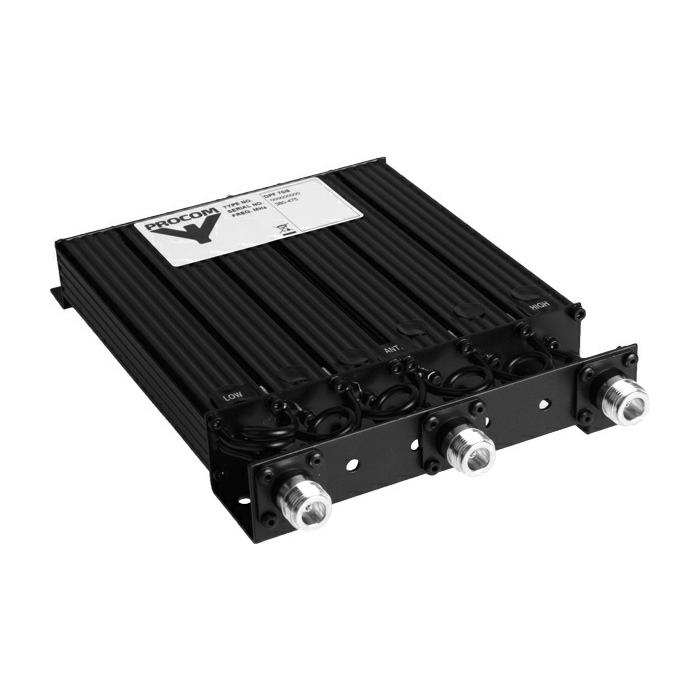

The DPF 70/6… is a 6-cavity duplex filter for duplex transceivers.

The DPF 70/6… can be adjusted within the complete 406 – 470 MHz band. The duplexer can be delivered in four different versions according to required duplex
spacing. See also “Ordering information” below.

The DPF 70/6… is primarily intended for equipment where the TX and RX operate on single frequencies, but it can also, however with slightly reduced data, be used where
the TX and RX operate on multi channels, i.e. within a certain port bandwidth. In the last case, factory-tuning is recommended.

The filter uses full-length ¼ λ cavities in a compact extruded aluminium housing. The chassis is made of passivated steel, and teflon insulation has been applied in the coaxial cables and in the connectors.

DPF 70/6… is coated with black vinyl to prevent corrosion.

Mechanical

Model DPF 70/6...
Frequency 406 - 470 MHz
Insertion Loss Tx-Ant and Ant-Rx Single-channel tuned < 1.2 dB (typ. 1.0 dB)
Multi-channel tuned, 2 MHz BW < 1.2 dB (typ. 1.0
dB)
Tx-Noise Suppression on Rx-
Frequency
Single-channel tuned > 85 dB
Multi-channel tuned, 2 MHz BW > 65 dB
Impedance 50 Ω
Duplex Spacing 1 - 10 MHz
VSWR < 1.5:1
Max. Input Power 50 W
Rx-Isolation on Tx-Frequency Single-channel tuned > 85 dB
Multi-channel tuned, 2 MHz BW > 65 dB

Mechanical

Connection(s) N female, BNC(f), TNC(f), UHF(f), SMA(f) on request
Dimensions 226 x 154 x 33 mm / 8.9 x 6.0 x 1.3"
Weight 0.99 kg / 2.18 lb

Environmental

Operating Temperature Range -30°C to +60°C
Frequency Stability 4.5 ppm/° C (approx.)
