Description

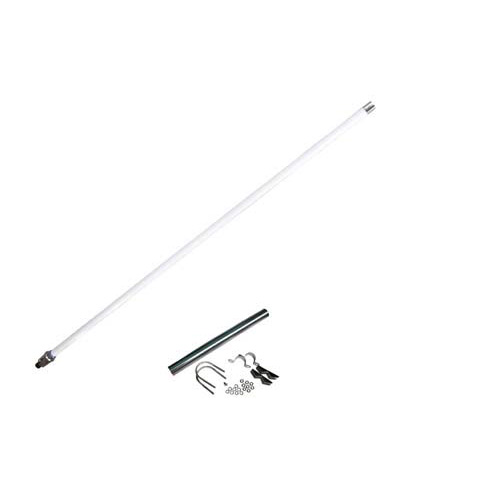

900/1800/1900/2170 MHz Omni-directional Antenna, 7.5 dBi with N-Female
2G/3G/4G 7.5dBi Omni Base Ant
2G/3G/4G 7.5dBi Omni Base Ant
| Frequency range | 900/1800/1900/2170 MHz |
| Gain(dBi) | 7.5 dBi |
| VSWR | <1.9 |
| Impedance | 50Ω |
| Polarization | Linear Vertical |
| HPBW / horizontal | 360° |
| HPBW / vertical | 25° |
| Power handling | 50W |
| Connector | N FEMALE |
| Survival wind speed | 180Km/hr |
| Temperature | -40°c to +80°c |
| Humidity | 100%@25°c |
| Lightning Protection | Direct Ground |
| Radome color | Gray-white |
| Radome material | Fiberglass |
| Weight | 1.6 Kg |
| Dimensions | L1100×W34×D34mm |
| Datasheet |  |
