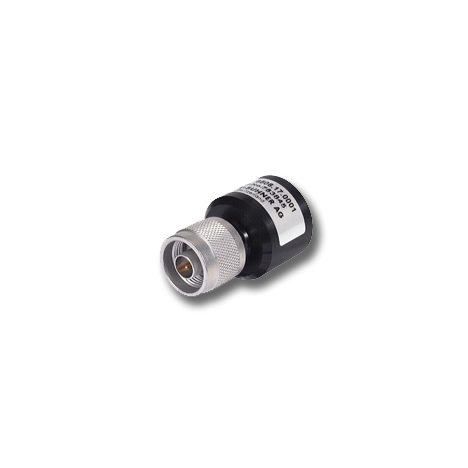

Load N Male, 6W DC-6GHz

Load Termination N Type Male, 6W DC-6GHz

Description

Load Termination N Type Male, 6W DC-6GHz

Product Configuration
Connector	N Male
Interface standard	IEC 60169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Nominal impedance	50 Ω
Frequency range	DC to 6 GHz
Frequency sub range (GHz)	DC to 2	2-4	4-6
VSWR max.	1.1	1.2	1.25
Power rating	6 Watt average power up to 40 °C ambient temperature, linearly derated to 0 Watt at 125 °C ambient temperature. 8 watt at max 20°C. Convection cooled. 1000 Watt peak power, 5 μs pulse, 0.05 % duty cycle
Mechanical Data
Weight	0.075 kg
Environmental Data
Operating temperature	-40 °C to 125 °C
2002/95/EC (RoHS)	non compliant
Material Data
Piece Part	Material	Surface Plating
Centre contact	Bronze	Gold Plating (without Nickel underplating)
Outer contact	Brass	SUCOPLATE ® Plating
Body / Heat sink	Aluminium
Insulator	PFA / PTFE
Coupling nut	Brass	SUCOPLATE ® Plating
Other Information
