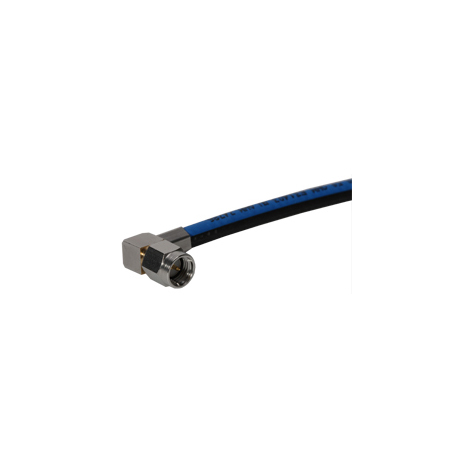

SMA Male Right Angle Crimp, suits RG223/RG142/RG400

Part # SMA223M-RA-HS. Categories: Connectors, SMA. Tags: Connectors, Crimp, Huber+Suhner, Male, RG142, RG223, RG400, Right Angle, SMA.

Description

H+S Code: 16_SMA-50-3-14/133_NE

Electrical Data
Impedance	50 Ω
Interface frequency max.	DC-18 GHz
Mechanical Data
Centre contact	soldered
Outer contact	crimped
Weight	0.0048 kg
Environmental Data
Operating Temperature	-65 °C to 165 °C
2011/65/EU, RoHS	compliant
Material Data
Piece Parts	Material	Surface Plating
Centre contact	Brass	SUCOPRO Plating
Outer	Brass	SUCOPLATE (R) Plating
Body	Brass	SUCOPLATE (R) Plating
Insulator	PTFE (Polytetrafluoroethylene)
Coupling nut	Brass	SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper	SUCOPLATE (R) Plating
Additional Information
Suitable cables	RG223, RG142, RG400
