Load DIN Male, 6W DC-8GHz

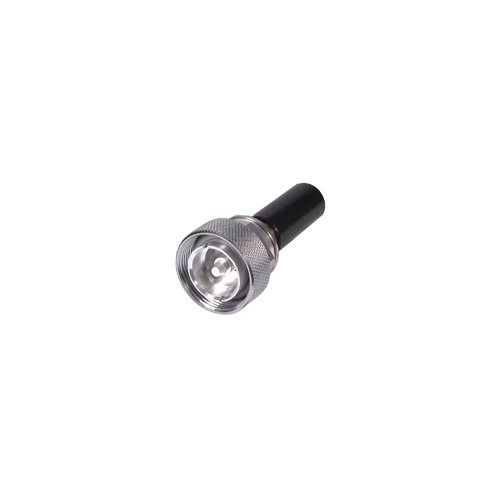

Load Termination DIN Male 6W, DC-8GHz

Description

Load Termination DIN Male 6W, DC-8GHz

  • DIN Male Connector
  • 50 Ω
  • 6 Watt
  • DC-8GHz
  • VSWR ≤ 1.1:1

Product Configuration

Connector 7/16 DIN Male
Interface standard IEC 60169-4_CECC 22190_DIN 47223_VG 95250

Technical Data

Electrical Data

Nominal impedance 50 Ω
Frequency range DC to 8 GHz
VSWR max. DC to 1 GHz 1 to 4 GHz 4 to 8 GHz
1.05 1.1 1.2
Power rating 6 Watt average power up to 40 ˚C ambient temperature, linearly derated to 0 Watt at 130 ˚C ambient
temperature.
1000 Watt peak power , 5 μs pulse, 0.05 % duty cycle

Mechanical Data

Weight 0.13 kg

Environmental Data

Operating temperature -40 °C to 130 °C
2002/95/EC (RoHS) compliant

Material Data

Piece Part
Material Surface Plating
Centre contact Brass Silver Plating
Outer contact Brass Silver Plating
Body Alumnium
Insulator Air Dielectric - Bead - PS
Coupling nut Brass SUCOPLATE ® Plating

Other Information

Datasheet pdf
Remarks ! WARNING: Beryllia Ceramic Inside ! DO NOT sand, scrap or tamper with. Dispose in accordance with all relevant regulations.
