Description

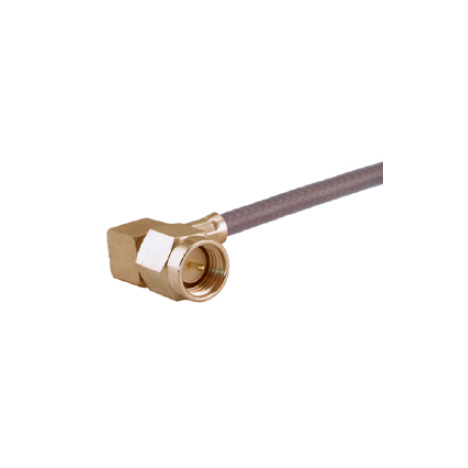

SMA Male Right Angle, suits RG400
H+S Code: 16_SMA-50-3-106/111_NH
SMA Male R/A, RG400
SMA Male Right Angle, suits RG400
Electrical Data |
||
| Impedance | 50 Ω | |
| Interface frequency max. | 18 GHz | |
| Mechanical Data | ||
| Centre contact | soldered | |
| Outer contact | crimped | |
| Weight | 0.0058 kg | |
Environmental Data |
||
| Operating Temperature | -65 °C to 165 °C | |
| 2002/95/EC (RoHS) | compliant | |
Material Data |
||
| Piece Parts | Material | Surface Plating |
| Centre contact | Copper Beryllium Alloy | Gold Plating (Nickel underplated) |
| Outer contact | Copper Beryllium Alloy | Gold Plating (Nickel underplated) |
| Body | Brass | Gold Plating (Nickel underplated) |
| Insulator | PFA / PTFE | |
| Gasket | MVQ (Silicone Rubber) | |
| Crimp ferrule | Copper | Gold Plating (Nickel underplated) |
Related Documents |
||
| Outline drawing | DOU-00005964 | |
| Catalogue drawing | DOU-00005970 | |
| Assembly instruction | DOC-0000178742 | |
Additional Information |
||
| Suitable cables | RG_223_/U, ENVIROFLEX_142, ENVIROFLEX_400, RG_142_B/U, RG 400 /U | |
